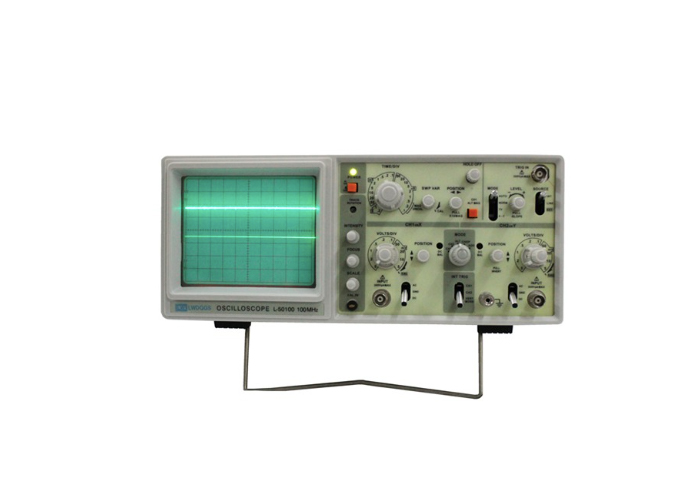

    100 Mhz Analog Oscilloscope L-50100:DC-100MHz

    Ask Lasest Price
    Model Number : L-50100
    Certification : CE
    Price : negotiable
    Payment Terms : T/T, Western Union
    Delivery Time : 5-8DAYS
    • Product Details
    • Company Profile

    100 Mhz Analog Oscilloscope L-50100:DC-100MHz

    100 mhz analog oscilloscope

    Product serial number L-50100


    Features:

    Dual channels/dual traces, X-Y mode
    6" display, high brightness oscilloscope tube
    High sensitivity triggering, up to 1mV/division clearer display than ordinary oscilloscope

    TV synchronous separation circuit to observe stable TV signal

    Triggering mode: AUTO/NORM/AV-V/AV-H

    Vertical: ALT/CHOP/ADD

    X-x10/Y-x5

    Polarity reversal

    CH1 Sync output

    Power supply: AC 220V ADN (110V optional)


    Specifications of oscilloscope L-50100

    CRT6 inches rectangular screen with internal graticule, 8*10div (1 div=1cm).Vertical deflection
    Display modeCH1, CH2, CH3, ADD, ALT, and CHOP
    Deflection factor5mV/div to 5V/div±3 %,( 1mV/div to 1V/div±5% at*5), 10steps.
    Rise time≤17.5ns
    Max. Input voltage40v (DC+AC peak value) when≤1KHz
    Input couplingAC, DC, Grounding
    Polarity selection±( CH2 only)

    Horizontal deflection

    Display mode: 1, 10, X-Y

    Time Base: 0.2us/div to 0.5s/div, 20 range

    Sweep expansion width:*10

    Accuracy: ±3%

    Triggering System:

    Triggering mode: NORM, AUTO, TV-V, TV-H

    Triggering sourde: CH1, CH2, LINE, EXT

    Sensitivity and Frequency: Auto: 20Hz---100MHz (VERT)

    Norm: 0.5div int, 0.8Vp—p EXT

    0.5div INT, 0.5vp---PEXT

    TV-H: At least 1 div or 1V p-p,

    Input impedance: 1MΩ

    X-Y Operation

    X-Y Phase difference: ≤3o,DC--50KHz

    Others:

    Calibration waveform: Frequency: 1KH 20%, Voltage: 0.5v1%

    Power supply: AC 220V/110V±10%, 50/60Hz

    Dimensions: 370*310*130mm Weight:8.5-9.5KG

    FAQ


    1. What is our company MOQ?

    As for now it is flexible, but it affects prices.


    2. What's the best payment term?

    Such as Western Union,T/T, L/C,Paypal, Bank Transfer, Money Gram, etc.

    3.What's our company sample policy?

    We will send you some samples with pleasure,but you need to pay for it.

    4. What is our shipment and delivery term?

    Shipment: Professional DHL/Fedex/TNT/UPS and other special line.

    Delivery term:Within 4-7 days after payment by (DHL/TNT/UPS/EMS/Fedex)
