VICTOR VC9808+ Portable Digital Multimeter With 1999 Counts

    Buy cheap VICTOR VC9808+ Portable Digital Multimeter With 1999 Counts from wholesalers

    Buy cheap VICTOR VC9808+ Portable Digital Multimeter With 1999 Counts from wholesalers
    • Buy cheap VICTOR VC9808+ Portable Digital Multimeter With 1999 Counts from wholesalers

    VICTOR VC9808+ Portable Digital Multimeter With 1999 Counts

    Ask Lasest Price
    Brand Name : VICTOR
    Model Number : VC9808+
    Certification : CE
    Price : negotiable
    Payment Terms : Western Union, T/T
    Delivery Time : 5-8DAYS
    • Product Details
    • Company Profile

    VICTOR VC9808+ Portable Digital Multimeter With 1999 Counts

    VICTOR VC9808+ Portable Digital Multimeter With 1999 Counts

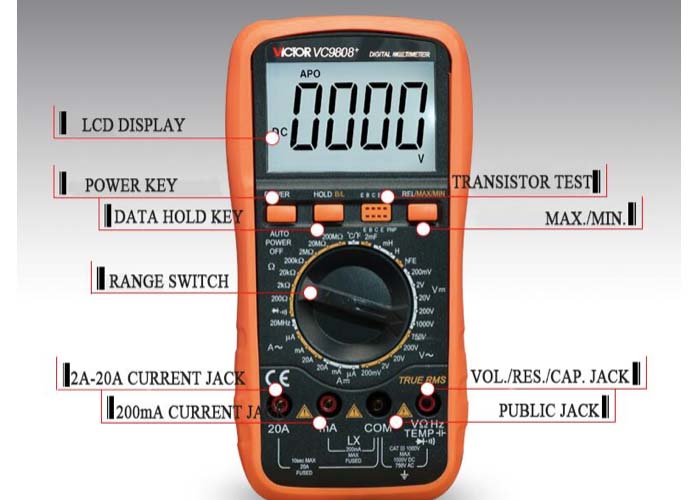

    The VC9808+ Portable Digital Multimeter is a stable and high performance digital multimeter driven by a battery.
    VC9808+ Portable Digital Multimeter uses the LCD with 70*50mm figure to make the reading clear. Unit symbol
    displaying, backlight and the function of overload protection make operation is
    convenient.


    Specifications of VC9808+ Portable Digital Multimeter :

    1-1.Displaying : LCD displaying

    1-2.Max. indication: 1999(3 1/2), auto polarity indication

    1-3.Measuring method: dual slope A/D transfer

    1-4.Sampling rate: approx. 3 times/sec

    1-5.Over range indication: MSD displays “OL”

    1-6.Low battery indication: “” symbol displays

    1-7.Operation: 0~40℃,relative humidity <80%


    Technical date of VC9808+ Portable Digital Multimeter :

    BaslcRangeVC9808+VC9806+
    DC Voltage200mV/2V/20V/200V±(0.5%+3)±(0.1%+5)
    1000V±(0.8%+10)±(0.2%+5)
    AC Voltage200mV±(0.8%+5)±(1.0%+25)
    2V/20V/200V±(0.8%+5)±(0.8%+25)
    750V±(1.2%+10)±(1.0%+25)
    DC Current200uA/2mA/20mA±(0.8%+10)±(0.5%+4)
    200mA±(0.8%+10)±(0.8%+6)
    20A±(2.0%+5)±(2.0%+15)
    AC Current200uA/2mA/20mA±(0.8%+10)
    200mA±(0.8%+10)±(1.5%+15)
    20A±(2.0%+5)±(2.5%+35)
    Resistance2000±(0.8%+5)±(0.4%+10)
    2kΩ/20kΩ/200kΩ/2MΩ±(0.8%+3)±(0.4%+5)
    20MΩ±(1.0%+25)±(1.2%+25)
    200MΩ±(5.0%+30)±(5.0%+45)
    Inductance2mH/20mH/200mH/2H/20H±(2.5%+30)
    Conductance(0.1~100)nS ±(1.0%+30)
    Capacitance20nF/200nF/2uF/20uF/200uF/2000uF ±(4.0%+50)
    200uF/2000uF±(5.0%+10)
    20nF/200nF/2uF/20uF±(3.5%+20)
    Frequency20Hz/200Hz/2kHz/20kHz/200kHz/2MHz ±(0.1%+3)
    10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/1±(1.0%+3)
    Celsius(-20~1000)C±(1.0%+5)
    Fahrenheit(0~1832)F±(0.75%+5)
    Special Function
    Diode Transistor yesyes
    Continuity Buzzer yesyes
    Low battery indication yesyes
    Hold Peak HoldData Hold
    Auto power off yesyes
    Backlight yesyes
    Function protection yesyes
    200mAprotection yesyes
    Input impedance 10MΩ10MΩ
    Sampling rate 3 times/s2 times/s
    AC frequency response 40-1000Hz40-1000Hz
    Operation way ManualManual
    Max.Display 199919999
    LCD Size 70*50mm70*50mm
    Battery 9V(6F22)9V(6F22)



    FAQ


    1. What is our company MOQ?

    As for now it is flexible, but it affects prices.


    2. What's the best payment term?

    Such as Western Union,T/T, L/C,Paypal, Bank Transfer, Money Gram, etc.

    3.What's our company sample policy?

    We will send you some samples with pleasure,but you need to pay for it.

    4. What is our shipment and delivery term?

    Shipment: Professional DHL/Fedex/TNT/UPS and other special line.

    Delivery term:Within 4-7 days after payment by (DHL/TNT/UPS/EMS/Fedex)
